Description

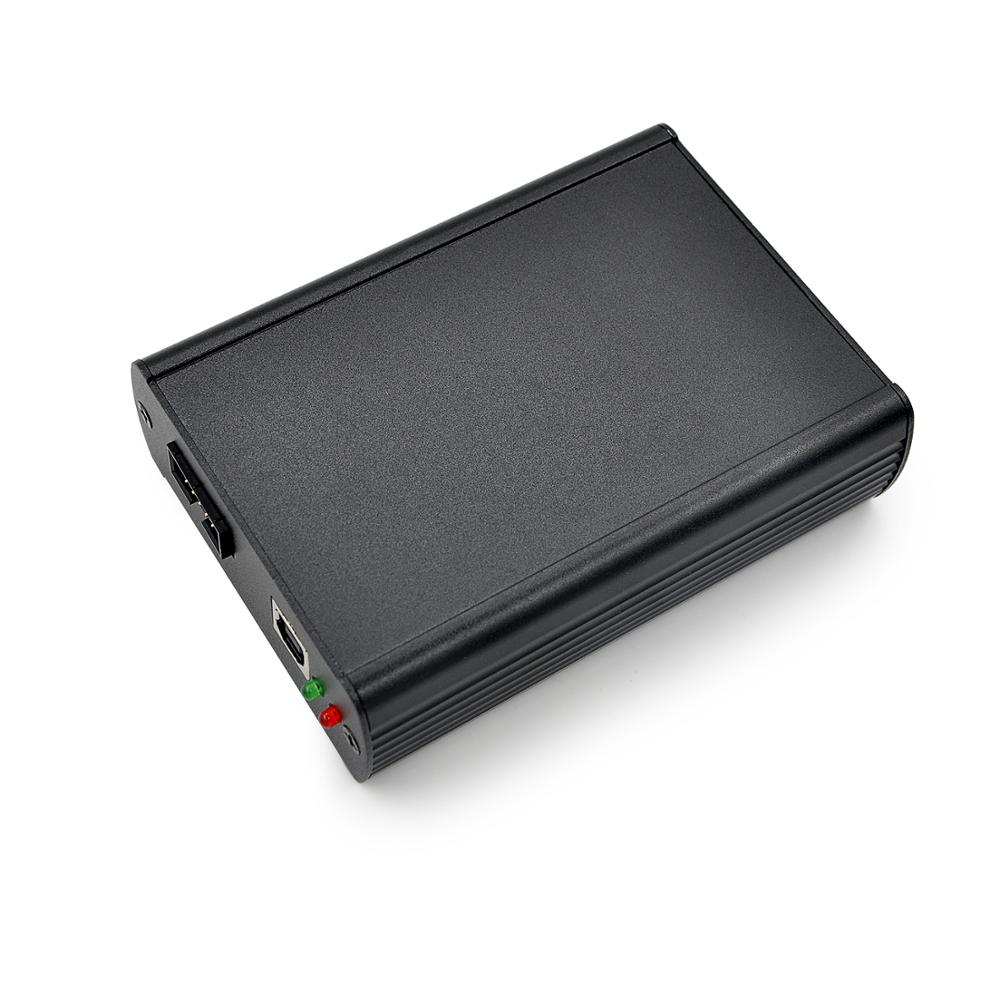

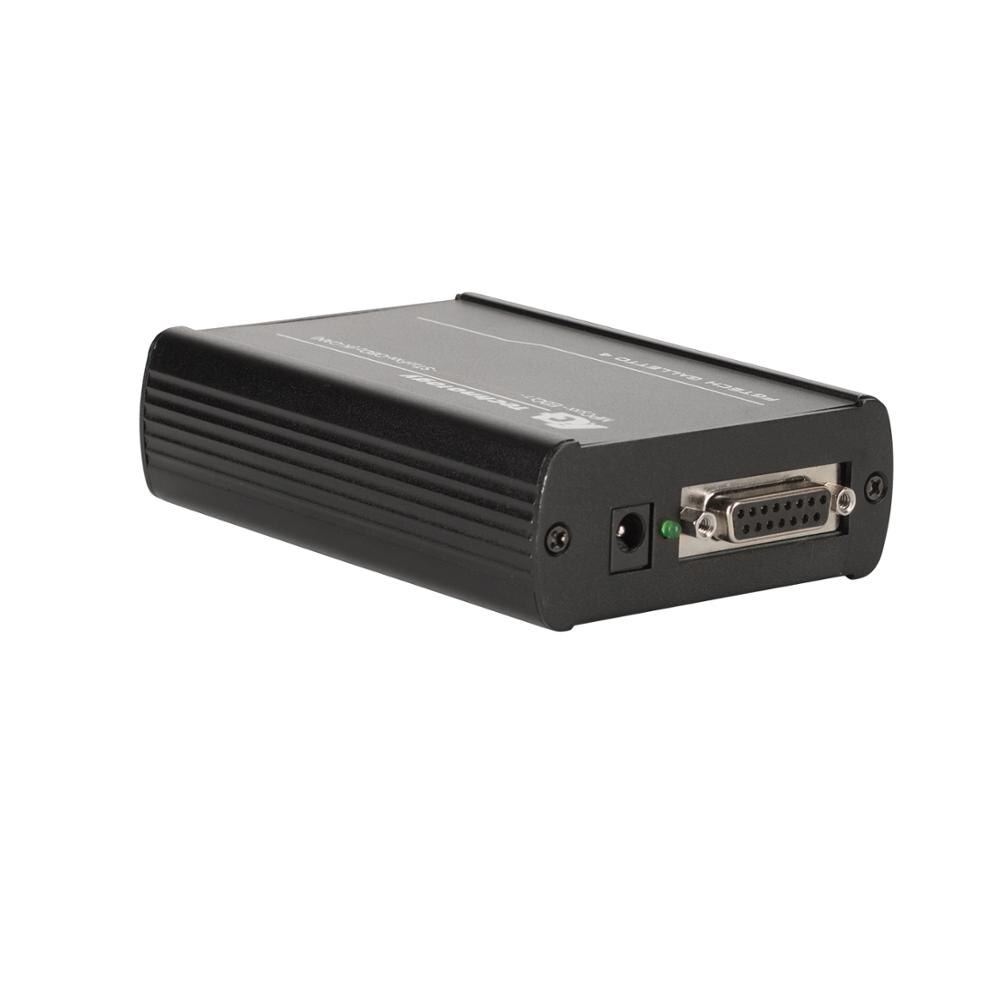

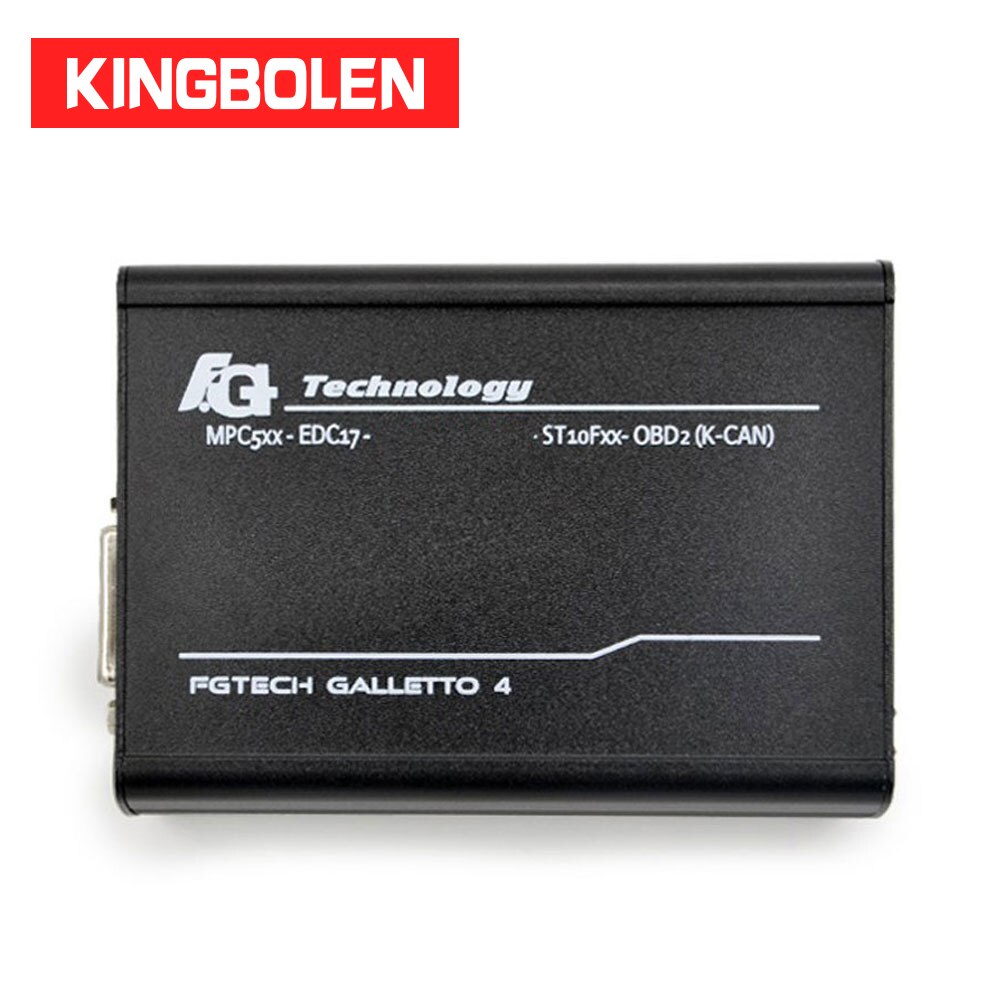

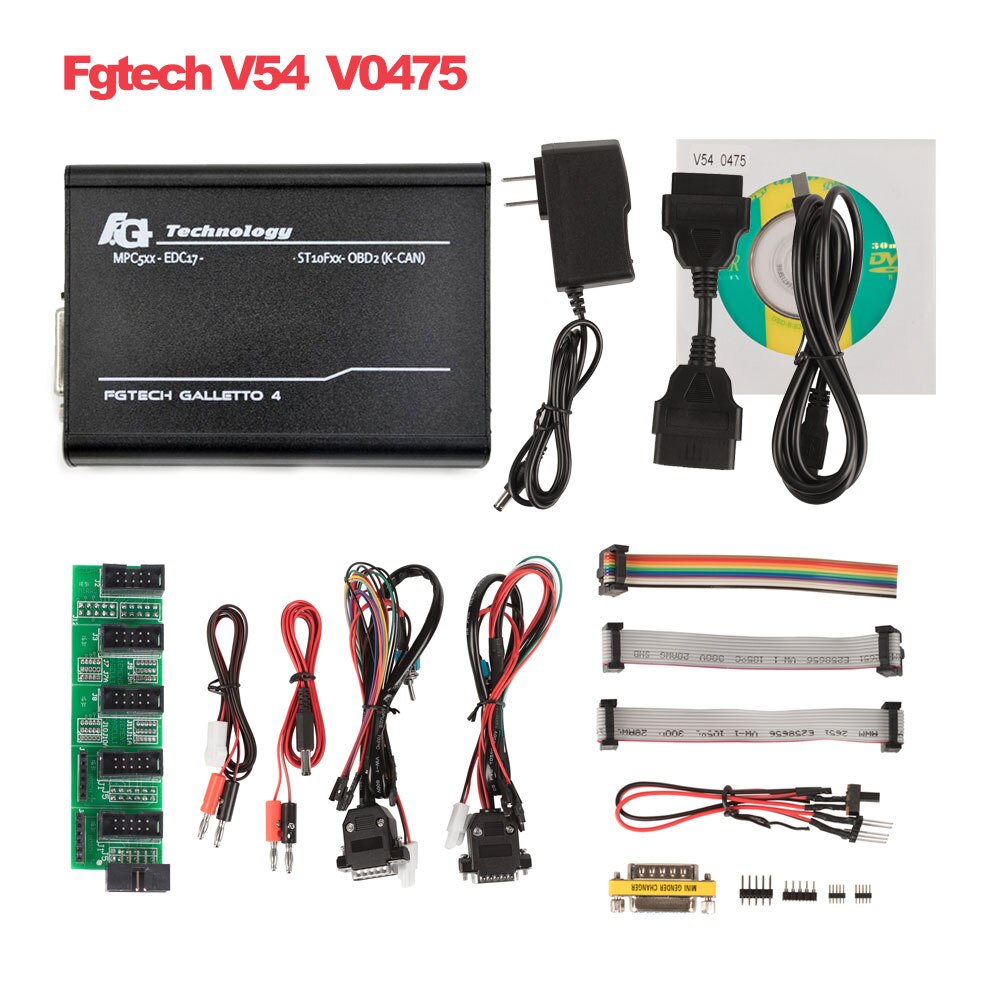

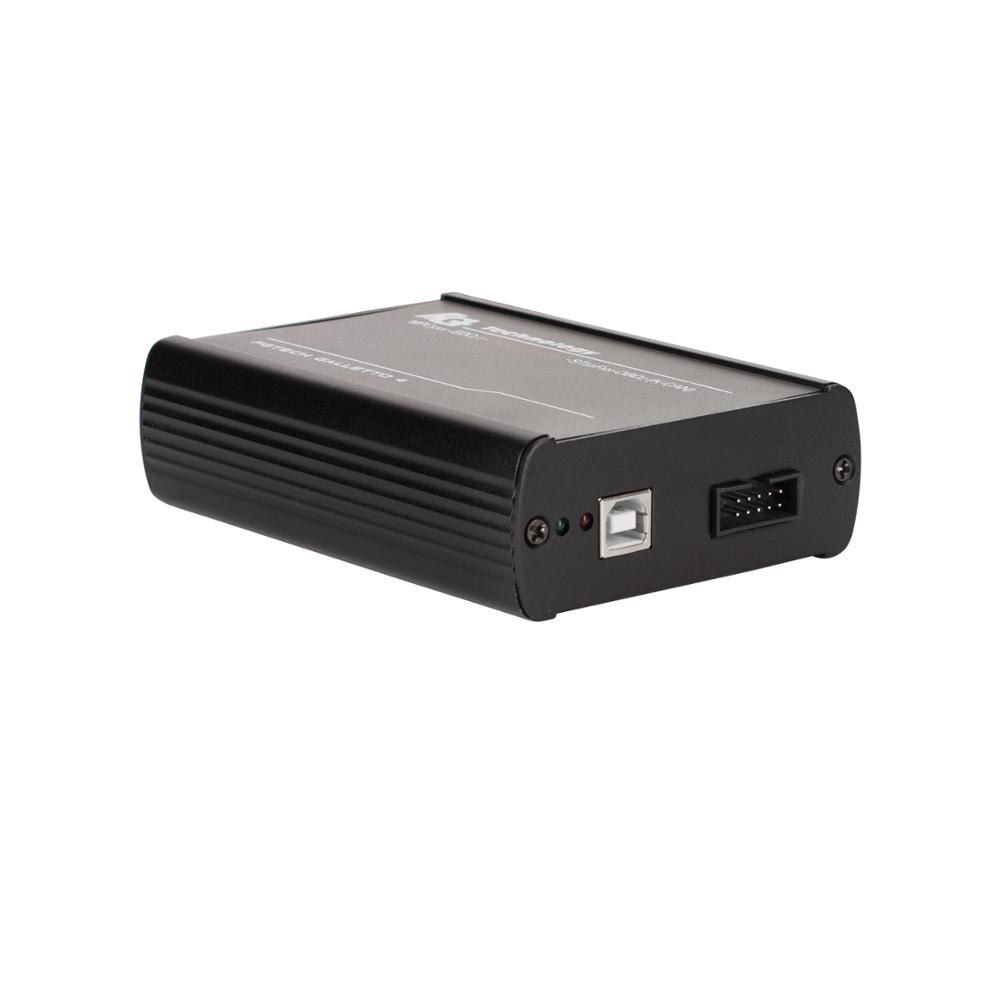

FG Tech Galletto 4-Master v54
Software Language:
Italiano, English, Deutsch, Francais, Espanol, Portugues, Czech, Turkish.
Features:
1. Support windows xp, vista, win7, more friendly than Fgtech v53, much easier to operate.
2. Unlock version , can use directly, no need to activate by us.
Difference between FGTECH FW 0475 EU Version and FGTECH FW 0386:
1.FW 0475 EU Version fixes all unstable errors which FW 0386 has. MCU, EEPROM, Relay, Resistance, Led, Solder, Pin, Capacitor all are corrected.
2. FW 0475 EU Version Adds new components, best FR232 USB bridge and relays. Work well with OBD / BDM / Boot / Tricore, FW 0386 is not good at Tricore.
3. FW 0475 EU Version Adds much more and newer vehicles and ECU protocols than FW 0386.
4. FW 0475 EU Version is unlocked version ,support online operation, means you can connect internet during use.
FW 0386 must disconnect internet during use.
5. FW 0475 EU Version inside PCB looks same as FW 0386, but the main program of pcb is different .
6. FW 0475 EU Version software version is same version V2012.02 as FW 0386 , But actually the software and driver is different. 0475 version software is more user-friendly.
7. FW 0475 software can not work with FW 0386.
Automatic Checksum:
All old protocols included from Bos-ch MExx/EDCxx/Marelli/Siemens/Delpy/Lucas/Denso Boot Mode C167x/ST10, Boot Mode In-Tr With password Bo-sch , Siemens Motorola MC68332 – MCYQQCU – MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507 Motorola Freescale MPC 555/556/561/562/563/564/565 Freescale MPC 5553/5554/5565/5566 BDM Tricore.
5-30V Car/Industrial Vehicles, L line/K line KWP, CAN
Can Bus V2.0 50Kb > 1000Kb
J1850 VPW PWM G-M -FO-RD
Rx Tx RS232,
RS 485,
Automatic setup Pull up K-L line 250, 500, 1000 ohm,
Automatic setup termination Can bus 0, 60,120 ohm,
